In this notebook, I will discuss the basic ideas of modelling quantiles and copula dependence. These ideas are important for risk managers as International banking regulations require banks to pay specific attention to the probability of large losses over short periods and the underestimation of dependence on extreme risks can lead to serious consequences, for instance, those we experienced during the last financial crisis. Including extreme risks in probabilistic models is recognized nowadays as a necessary condition for good risk management in any institution, and is not restricted anymore to reinsurance companies, who are the providers of covers for natural catastrophes. One of the main problems that come up is the fact that the observed data usually only includes a few extreme observations and never exceeds the maximum historical observation, meaning we only have a truncated version of the “real” distribution. This makes the simulation of extreme values problematic. For a more detailed overview see Gilli or Kratz
import numpy as np
import requests
import pandas as pd
import matplotlib.pyplot as plt
from scipy.stats import norm, t, kurtosis, skew, nct, beta, pareto, expon, genpareto, kendalltau
from scipy.optimize import minimize, brentq
from statsmodels.distributions.empirical_distribution import ECDF
headers = {'User-Agent': 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_11_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/50.0.2661.102 Safari/537.36'}
url_esg = f"https://query1.finance.yahoo.com/v7/finance/spark?symbols=^GSPC&range=10y&interval=1d&indicators=close&includeTimestamps=false&includePrePost=false&corsDomain=finance.yahoo.com&.tsrc=finance"
response = requests.get(url_esg, headers=headers)
def get_index(tick):
"""
Function that takes the sp500 index from yahoo
"""
headers = {'User-Agent': 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_11_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/50.0.2661.102 Safari/537.36'}
# ESG historical data (only changes yearly)
url_esg = f"https://query1.finance.yahoo.com/v7/finance/spark?symbols={tick}&range=10y&interval=1d&indicators=close&includeTimestamps=false&includePrePost=false&corsDomain=finance.yahoo.com&.tsrc=finance"
response = requests.get(url_esg, headers=headers)
if response.ok:
sp500 = pd.DataFrame({'date':pd.to_datetime(response.json()['spark']['result'][0]['response'][0]['timestamp'], unit= 's'),
'price':response.json()['spark']['result'][0]['response'][0]['indicators']['quote'][0]['close']})
else:
print("Empty data frame")
sp500 = pd.DataFrame()
return sp500
sp500 = get_index('^GSPC')
nasdaq = get_index('^IXIC')

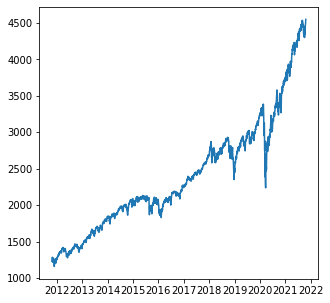

plt.figure(figsize=(5,5))
plt.plot(sp500['date'], sp500['price'])
[<matplotlib.lines.Line2D at 0x286fa8c8fa0>]

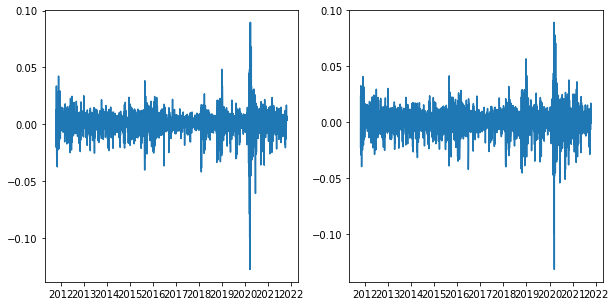

Let’s plot the daily log-returns
sp500['log_return'] = np.log(sp500['price']).diff()
sp500 = sp500.iloc[:,:].dropna(axis= 0)
nasdaq['log_return'] = np.log(nasdaq['price']).diff()
nasdaq = nasdaq.iloc[:,:].dropna(axis= 0)
fig, ax = plt.subplots(1,2, figsize=(10,5))
ax[0].plot(sp500['date'], sp500['log_return'])
ax[1].plot(nasdaq['date'], nasdaq['log_return'])
Extremes
Let’s plot the histogram and try different probability distributions.
mu_normal = np.mean(sp500['log_return'])
var_normal = np.mean((sp500['log_return']-mu_normal) ** 2)
normal_fit = norm.pdf(sorted(sp500['log_return']), mu_normal, np.sqrt(var_normal))
mu_normal
0.0005225186337781287
A normal distribution
For the normal distribution, we simply use the well-known maximum likelihood estimators for parameters.

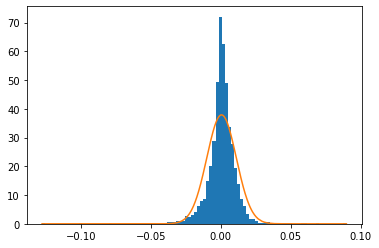

bins = plt.hist(sp500['log_return'], bins = 100, density=True)
plt.plot(sorted(sp500['log_return']),normal_fit)

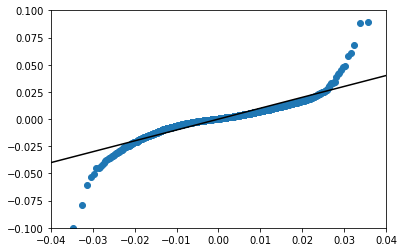

fig, ax = plt.subplots()
ax.plot([-1,1], [-1,1], color = 'black')
ax.scatter(norm.ppf(np.array(range(sp500.shape[0]))/sp500.shape[0], mu_normal, np.sqrt(var_normal)),sorted(sp500['log_return']))
ax.set_xlim([-0.04, 0.04])
ax.set_ylim([-0.1, 0.1])
A student t distribution
$$ r_t = m + sx_t$$
where $x_t$ is the standard t random variable. We can fit by a method of moments
m = np.mean(sp500['log_return'])
v = (4*kurtosis(sp500['log_return']) - 6)/(kurtosis(sp500['log_return'])-3)
s = np.sqrt( (np.std(sp500['log_return']) ** 2)* (v-2) / v)
t_fit = t.pdf(sorted(sp500['log_return']), df = v, loc = m, scale = s)

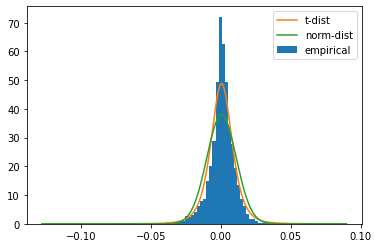

bins = plt.hist(sp500['log_return'], bins = 100, density=True, label = 'empirical')
plt.plot(sorted(sp500['log_return']),t_fit, label = 't-dist')
plt.plot(sorted(sp500['log_return']),normal_fit, label = 'norm-dist')
plt.legend()

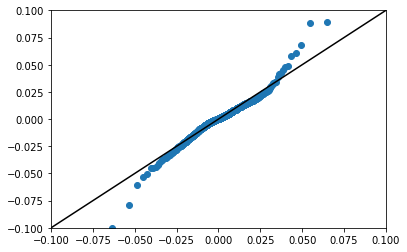

fig, ax = plt.subplots()
ax.plot([-1,1], [-1,1], color = 'black')
ax.scatter(t.ppf(np.array(range(sp500.shape[0]))/sp500.shape[0], df = v, loc = m, scale = s),sorted(sp500['log_return']))
ax.set_xlim([-0.1, 0.1])
ax.set_ylim([-0.1, 0.1])
non-central t distribution
The skewness of the sp500 data is
skew(sp500['log_return'])
-0.9309407317689141

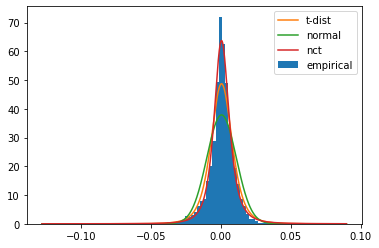

Thus, it is natural to consider a distribution that is not symmetric, such as the non-central t distribution. We have to run an optimization algorithm to find the parameters:
params = nct.fit(sp500['log_return'], floc = 0)
nct_fit = nct.pdf(sorted(sp500['log_return']), df = params[0], nc = params[1], loc = params[2], scale = params[3])
bins = plt.hist(sp500['log_return'], bins = 100, density=True, label = 'empirical')
plt.plot(sorted(sp500['log_return']),t_fit, label = 't-dist')
plt.plot(sorted(sp500['log_return']),normal_fit, label = 'normal')
plt.plot(sorted(sp500['log_return']),nct_fit, label = 'nct')
plt.legend()

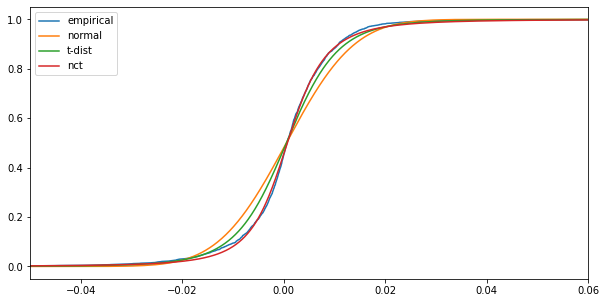

So the fit seems to be good. Let’s inspect the tails.
empirical_cdf = ECDF(sorted(sp500['log_return']))
normal_cdf = norm.cdf(sorted(sp500['log_return']), mu_normal, np.sqrt(var_normal))
t_cdf = t.cdf(sorted(sp500['log_return']), df = v, loc = m, scale = s)
nct_cdf = nct.cdf(sorted(sp500['log_return']), df = params[0], nc = params[1], loc = params[2], scale = params[3])
fig, ax = plt.subplots(figsize = (10,5))
ax.plot(sorted(sp500['log_return']), empirical_cdf(sorted(sp500['log_return'])), label = 'empirical')
ax.plot(sorted(sp500['log_return']), normal_cdf, label = 'normal')
plt.plot(sorted(sp500['log_return']), t_cdf, label = 't-dist')
plt.plot(sorted(sp500['log_return']), nct_cdf, label = 'nct')
plt.legend()
plt.xlim([-0.05, 0.06])

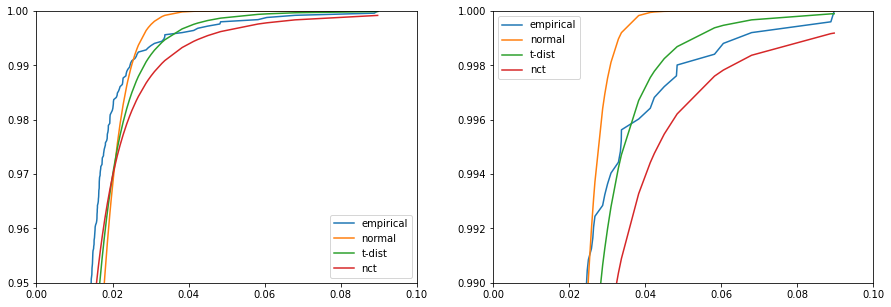

fig, ax = plt.subplots(1,2, figsize = (15,5))
ax[0].plot(sorted(sp500['log_return']), empirical_cdf(sorted(sp500['log_return'])), label = 'empirical')
ax[0].plot(sorted(sp500['log_return']), normal_cdf, label = 'normal')
ax[0].plot(sorted(sp500['log_return']), t_cdf, label = 't-dist')
ax[0].plot(sorted(sp500['log_return']), nct_cdf, label = 'nct')
ax[0].legend()
ax[0].set_ylim([0.95, 1])
ax[0].set_xlim([0, 0.1])
ax[1].plot(sorted(sp500['log_return']), empirical_cdf(sorted(sp500['log_return'])), label = 'empirical')
ax[1].plot(sorted(sp500['log_return']), normal_cdf, label = 'normal')
ax[1].plot(sorted(sp500['log_return']), t_cdf, label = 't-dist')
ax[1].plot(sorted(sp500['log_return']), nct_cdf, label = 'nct')
ax[1].legend()
ax[1].set_ylim([0.99, 1])
ax[1].set_xlim([0, 0.1])
The nct seems to fit the center part the best, while the t-distribution seems to fit the tail the best.
Order Statistics of the empirical distribution

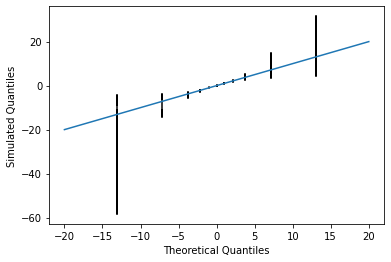

Let’s compare the case when we calculate the quantiles from the observed data vs the theoretical quantile. We will assume that the data comes from a t distribution with 4 degrees of freedom. We calculate the quantiles using our 1000 observations and compare it to the theoretical quantile. We repeat this experiment 1000 times to get a feeling of the variability of our quantile estimate from the observations.
pv = [0.0001,0.001,0.01,0.05,0.2,0.5,0.8,0.95,0.99,0.999,0.9999]
simulate_quantile = np.zeros((len(pv), 1000))
theoretical_quantile = np.zeros((len(pv), 1000))
for i in range(1000):
simulate_quantile[:,i] = np.quantile(t.rvs(df =4, size = 1000), pv)
theoretical_quantile[:, i] = t.ppf(pv, df = 4)
for j, _ in enumerate(pv):
plt.plot(theoretical_quantile[j,:], simulate_quantile[j, :], color = 'black')
plt.plot([-20, 20],[-20, 20])
plt.xlabel('Theoretical Quantiles')
plt.ylabel('Simulated Quantiles')
We see that the non-center simulated quantiles have much higher variability. This examples shows that the tail quantiles of the empirical distribution are inaccurate predictors of the true quantiles. Thus, when calculating tail quantiles, such as VaR, one has to fit a distribution to the data, rather then estimating the quantiles from the observed data.
The usual approach is to use the empirical distribution in the main body of the data between the 5% and 95% quantiles), while fitting a heavy tail distribution to the tails, for example the pareto distribution.
Estimating the Tail losses
q05
-0.01545860011031408
q05 = np.quantile(sp500['log_return'], 0.05) # 5% quantile
losses = - sp500['log_return'].loc[sp500['log_return'] < q05] +q05
params = expon.fit(losses, loc = 0, scale = 1)
params_t = t.fit(losses, loc = 0)
(1.6520658512964799, 0.005612857735874041, 0.004692617830430222)

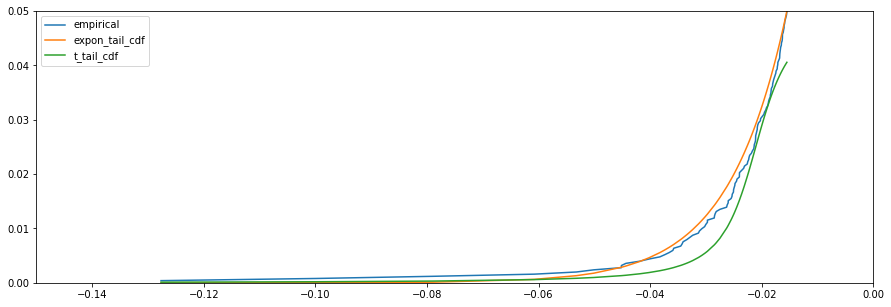

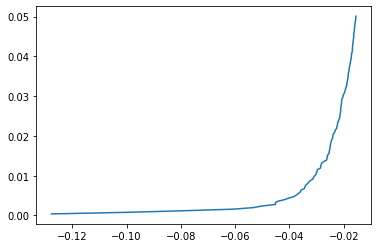

plt.plot(sorted(sp500['log_return'].loc[sp500['log_return'] < q05]), empirical_cdf(sorted(sp500['log_return'].loc[sp500['log_return'] < q05])))
expon_tail_cdf = 0.05*np.sort((1-expon.cdf(losses, loc = params[0], scale = params[1])))
t_tail_cdf = 0.05*np.sort(1-t.cdf(losses,df = params_t[0], loc = params_t[1], scale = params_t[2]))
fig, ax = plt.subplots(1,1, figsize = (15,5))
ax.plot(sorted(sp500['log_return']), empirical_cdf(sorted(sp500['log_return'])), label = 'empirical')
ax.plot(sorted(sp500['log_return'].loc[sp500['log_return'] < q05]), expon_tail_cdf, label = 'expon_tail_cdf')
ax.plot(sorted(sp500['log_return'].loc[sp500['log_return'] < q05]), t_tail_cdf, label = 't_tail_cdf')
ax.legend()
ax.set_ylim([0.0, 0.05])
ax.set_xlim([-0.15, 0.0])
Threshold exceedances
What is the distribution of \(X(t)\) given \(X(t)\) exceeds some high threshold (for example, its 0.99 quantile)? The generalized Pareto Distribution has been shown to model the tail distribution given that the threshold is large enough GIVEN that the maximum can be modelled by a General extreme value distribution, which most distributions considered have.
q05 = np.quantile(sp500['log_return'], 0.05) # 5% quantile
losses = - sp500['log_return'].loc[sp500['log_return'] < q05] +q05
params_genpareto = genpareto.fit(losses, loc = 0)
params_genpareto
(0.43767003369774377, 3.0926415630468514e-05, 0.0067057240009978335)
genpareto_tail_pdf = genpareto.pdf(sorted(losses), params_genpareto[0], params_genpareto[1], params_genpareto[2])
genpareto_tail_cdf = genpareto.cdf(sorted(losses), params_genpareto[0], params_genpareto[1], params_genpareto[2])
genpareto_tail_cdf = 0.05*np.sort(1-genpareto_tail_cdf)

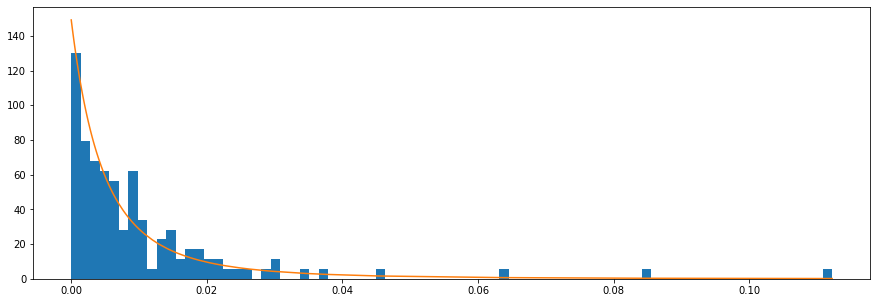

fig, ax = plt.subplots(1,1, figsize = (15,5))
ax.hist(losses, density=True, bins = 80)
ax.plot(sorted(losses), genpareto_tail_pdf)

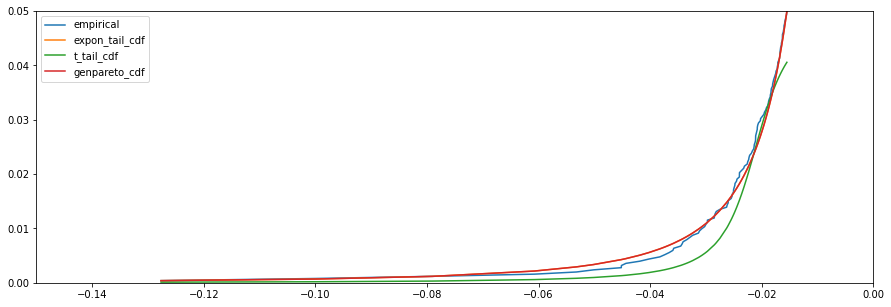

fig, ax = plt.subplots(1,1, figsize = (15,5))
ax.plot(sorted(sp500['log_return']), empirical_cdf(sorted(sp500['log_return'])), label = 'empirical')
ax.plot(sorted(sp500['log_return'].loc[sp500['log_return'] < q05]), genpareto_tail_cdf, label = 'expon_tail_cdf')
ax.plot(sorted(sp500['log_return'].loc[sp500['log_return'] < q05]), t_tail_cdf, label = 't_tail_cdf')
ax.plot(sorted(sp500['log_return'].loc[sp500['log_return'] < q05]), genpareto_tail_cdf, label = 'genpareto_cdf')
ax.legend()
ax.set_ylim([0.0, 0.05])
ax.set_xlim([-0.15, 0.0])
Copulas
Modelling both indexes. First we model the volatility to get the residuals. Then we apply a copula to the residuals, as the residuals is the loss.
The Garch(1,1) model is for returns \(r_t\) is:
$$ \begin{aligned} r_t &= \mu_t + \epsilon_t \\\ \epsilon_t &=z_t\sigma_t \\\ \sigma_t^2 &= \alpha_0 + \alpha_1 \epsilon_{t-1}^2 + \beta_1\sigma_{t-1}^2 \end{aligned} $$ \(\alpha_0, \alpha_1, \beta_1 > 0\) as volatility is positive. \(z_t\) is iid and \(E[z_t] = 0\) and \(Var[z_t] = 1\). \(mu_t\) is usually assumed to be constant. Let \(u_t = (\epsilon_t^2 - sigma_t^2 )\) and plug it in then
$$ \epsilon_t^2 =\alpha_0 + (\alpha_1 + \beta_1) \epsilon_{t-1}^2 + u_t -\beta_1u_{t-1}$$
We see that this is simply an ARIMA process. We set the constraints \(0 < \alpha_1 + \beta_1 <1\) to get a mean-reverting process.
Also, More realistic VaR estimation with GARCH -> VaR = mean + (GARCH vol) * quantile
Let’s fit a Garch model.
from arch import arch_model
sp500_garch_model = arch_model(sp500['log_return'], p = 1, q = 1,
mean = 'constant', vol = 'GARCH', dist = 'normal')
sp500_garch_fit = sp500_garch_model.fit()
nasdaq_garch_model = arch_model(nasdaq['log_return'], p = 1, q = 1,
mean = 'constant', vol = 'GARCH', dist = 'normal')
nasdaq_garch_fit = nasdaq_garch_model.fit()

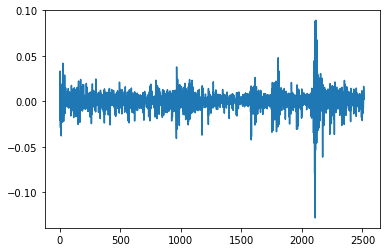

plt.plot(sp500_garch_fit.resid)
from statsmodels.stats.diagnostic import acorr_ljungbox
# Perform the Ljung-Box test, do
# The null hypothesis of Ljung-Box test is: the data is independently distributed.
lb_test = acorr_ljungbox(sp500_garch_fit.resid , lags = 10)
# Store p-values in DataFrame
df = pd.DataFrame({'P-values': lb_test.iloc[:,1]}).T
# Create column names for each lag
col_num = df.shape[1]
col_names = ['lag_'+str(num) for num in list(range(1,col_num+1,1))]
# Display the p-values
df.columns = col_names
df
.dataframe tbody tr th {
vertical-align: top;
}
.dataframe thead th {
text-align: right;
}
nasdaq_garch_fit.resid
1 -0.020776
2 0.009954
3 0.033189
4 -0.000138
5 -0.025576
...
2511 0.006905
2512 0.002842
2513 0.006839
2514 0.003130
2515 0.002464
Name: resid, Length: 2515, dtype: float64
Copula fit
First, fit the marginals
sp500_nct_params = nct.fit(sp500_garch_fit.resid)
sp500_nct_fit = nct.pdf(sorted(sp500['log_return']), df = sp500_nct_params[0], nc = sp500_nct_params[1], loc = sp500_nct_params[2], scale = sp500_nct_params[3])
nasdaq_nct_params = nct.fit(nasdaq_garch_fit.resid)
nasdaq_nct_fit = nct.pdf(sorted(nasdaq['log_return']), df = nasdaq_nct_params[0], nc = nasdaq_nct_params[1], loc = nasdaq_nct_params[2], scale = nasdaq_nct_params[3])
Generate Uniforms
sp500_uni = nct.cdf(sp500_garch_fit.resid, df = sp500_nct_params[0], nc = sp500_nct_params[1], loc = sp500_nct_params[2], scale = sp500_nct_params[3] )
nasdaq_uni = nct.cdf(nasdaq_garch_fit.resid, df = nasdaq_nct_params[0], nc = nasdaq_nct_params[1], loc = nasdaq_nct_params[2], scale = nasdaq_nct_params[3] )

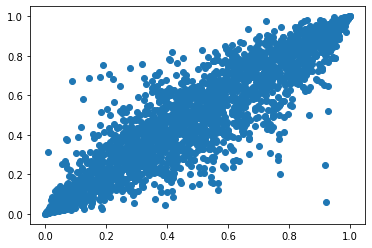

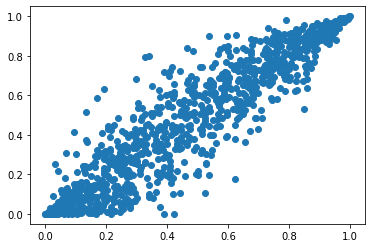

plt.scatter(sp500_uni, nasdaq_uni)
The key point is that the scatterplots on the unit square \([0; 1]\) remove the influence of the marginal distributions. As a consequence they allow us to focus on the dependency structure between the two random variables Z1 (S&P500) and Z2 (Nasdaq).
To fit a a copula one can do a maximum likelihood estimation. Once can also calculate kendell’s tau and estimate the parameter using the estimated kendell’s tau as kendell’s tau is known for many copulas.
def clayton(u1, u2, theta):
return np.power(np.power(u1, -theta) + np.power(u2, -theta) - 1, -1.0 / theta)
Calculate kendell tau to fit the clayton copula:
tau, p_val = kendalltau(sp500_uni, nasdaq_uni)
theta = 2 * tau / (1 - tau)
theta
Simulating Copulas
We can simulate from parameteric copulas, using the following conditional probability:
$$ C_{u_1}(u_2) = P( U_2 < u_2 | U_1 = u_1) = \lim_{h \to 0} \frac{C(u_1 + h,u_2) - C(u_1,u_2)}{h} = \frac{\partial C(u_1, u_2)}{\partial u_1}$$
The procedure is following:
Generate random variables \(u_1\) and \(t\) and set \(u_2 =C_{u_1}^{-1}(t)\). The desired dependent pair is \((u_1, u_2)\)
If we use the Gumbell Copula:
$$C(u,v) =\exp \Big( - \big( (-\ln u)^\alpha + (-\ln v)^\alpha \big)^{\frac{1}{\alpha}} \Big) $$
We get:
$$C_u(u_2) = C(u_1,u_2) * \frac{(-\ln u_1)^{\alpha-1}}{u_1} \Big( (-\ln u_1)^\alpha + (-\ln u_2)^\alpha \big)^{\frac{1}{\alpha}-1}\Big)$$
Computing the inverse is a bit hard, we need to do it numerically
Let’s simulate them:
def Gumbel(u,v, alpha):
return np.exp( -(np.power(-np.log(u), alpha) + np.power(-np.log(v), alpha) ) ** (1.0 / alpha))
def cond_gumbel(u,v, alpha):
part1 = np.power(-np.log(u), alpha -1) / u
part2 = ( np.power(-np.log(u), alpha) + np.power(-np.log(v), alpha)) ** ((1.0 / alpha) - 1.0)
return Gumbel(u,v, alpha) * part1 * part2
def inverse_obj(v, t, u, alpha):
"""
Solve C_u(v) = t given u and alpha
"""
return cond_gumbel(v, u, alpha) - t
def inverse(t, u, alpha,):
res = brentq(inverse_obj, 1e-16, 1, args = (t, u, alpha))
return res
inverse_vec = np.vectorize(inverse, excluded= ('alpha', 'init_x'))
u = np.array([99])
u
array([99])
u = np.array([99])
v = np.array([99])
for i in range(100):
u_tmp = np.random.uniform(size = 10)
t = np.random.uniform(size = 10)
# Numerical erros
try:
v_tmp = inverse_vec(t, u_tmp, 4.0)
except ValueError:
v_tmp = None
if not v_tmp is None:
u = np.hstack((u, u_tmp))
v = np.hstack((v, v_tmp))
plt.scatter(u[1:], v[1:])
