Dependent Gaussian Processes
In this workbook, I am going to reproduce the work of Phillip Boyle and Marcus Frean Dependent Gaussian Processes. I will assume that the reader is familiar with the basics of Gaussian Processes
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
Consider a device that operates on a continuous, real-valued input signal overtime $x(t)$ and emits a continuous real-valued output $y(t)$. This device is a linear time-invariant (LTI) filter if it is
- Linear: If $x(t) = x_1(t)+x_2(t) then the output is $y(t) = y_1(t) + y_2(t)
- Time invariant: The output response to a shifted input $x(t+ \tau)$ is $y(t+ \tau)$
An LTI filter is completely characterized by its impulse response, $h(t)$, which is equivalent to the output when the filter is stimulated by a unit impulse $\delta(t)$. Given the impulse response, we can find the output of the filter in response to any finite input via convolution:
$$ y(t) = h(t) * x(t) = \int h(t-\tau)x(\tau)d\tau$$
When a linear filter is excited with Gaussian white noise $w(t)$, the covariance function of a zero-mean output process can be shown to be:
$$ cov(y(t), y(t’) = \int h(\tau) h(t’ -t +\tau)d\tau$$
Furthermore, this brings us to the main theme of this workbook, if $y_1(t)$ and $y_2(t) are two real-values outputs driven by the same white noise w(t) then their cross-covariance can be written as
$$ cov(y_1(t), y_2(t’) = \int h_1(\tau) h_2(t’ -t +\tau)d\tau$$
where $h_i$ is the filter of process $y_i$.
If we define a Gaussian filter
$$ h(x) = b \exp \big( -0.5 ax^2 \big)$$
then the covariance and cross-covariance functions can be calculated explicitly:
$$ cov_{ii}(t-t’) = \frac{\pi^{1/2} b_i^2}{\sqrt(a_i) } \exp \big( -0.25 a(t-t’)^2 \big) $$ $$ cov_{ij}(t-t’) = \frac{(2\pi)^{1/2} b_i b_j}{\sqrt(a_i + a_j) } \exp \big( -0.25 \frac{a_1 a_2}{a_1 + a_2}(t-t’)^2 \big) $$
Note that we can define this for the case when $t$ is a vector as well.
To motivate why this formulation is useful. We show that we can use one process say $y_2$ at time $t$ to predict unobserved values of $y_1$ at time $t$
We start by simulating two dependent processes
time = np.arange(60)
y_signal = np.sin(time*0.4)
y1 = y_signal[:30] + np.random.normal(scale = 0.1,size = 30)
y2 = y_signal[:30] + np.random.normal(scale = 0.1, size = 30)
x1 = time[:30]
x2 = time[:30]

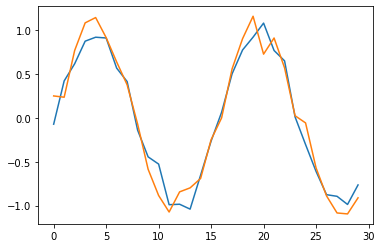

plt.plot(x1, y1)
plt.plot(x2, y2)
[<matplotlib.lines.Line2D at 0x1171c9a3460>]
Define the kernels
from sklearn.metrics import pairwise_distances
def C_ii(a,b, sigma, x,y):
d = pairwise_distances(np.expand_dims(x, axis = 1),np.expand_dims(y, axis = 1)) ** 2
return ((b**2)*np.power(np.pi, 0.5)*np.exp(-0.25*a*d) / np.sqrt(a)) + np.identity(d.shape[0])*sigma
def C_ii_pred(a,b, x,y):
d = pairwise_distances(np.expand_dims(x, axis = 1),np.expand_dims(y, axis = 1)) ** 2
return (b**2)*np.power(np.pi, 0.5)*np.exp(-0.25*a*d ) / np.sqrt(a)
def C_ij(a1,a2,b1,b2, x,y):
d = pairwise_distances(np.expand_dims(x, axis = 1),np.expand_dims(y, axis = 1)) ** 2
const1 = (2*np.pi) ** 0.5
const2 = np.sqrt(a1+a2)
const3 = a1*a2/(a1+a2)
return b1*b2*const1 * np.exp(-0.5*const3 * d)/const2
def C_ji(a1,a2,b1,b2, x,y):
d = pairwise_distances(np.expand_dims(y, axis = 1),np.expand_dims(x, axis = 1)) **2
const1 = (2*np.pi) ** 0.5
const2 = np.sqrt(a1+a2)
const3 = a1*a2/(a1+a2)
return b1*b2*const1 * np.exp(-0.5*const3 * d)/const2
def neg_lik(C, y):
from numpy.linalg import cholesky, det
from scipy.linalg import solve_triangular
try:
L = cholesky(C)
except np.linalg.LinAlgError:
return 9999
S1 = solve_triangular(L, y, lower=True)
S2 = solve_triangular(L.T, S1, lower=False)
return np.sum(np.log(np.diagonal(L))) + \
0.5 * y.dot(S2) + \
0.5 * len(y) * np.log(2*np.pi)
#return 0.5 * np.log(np.linalg.det(C)) + \
# 0.5 * np.dot(y,np.linalg.inv(C)).dot(y) + \
# 0.5 * len(y) * np.log(2*np.pi)
# return const1 + const2 + const3
def predict(param, y1, y2, x1,x2, x1_star, x2_star, sigma):
a1 = param[0]
a2 = param[1]
b1 = param[2]
b2 = param[3]
C_11 = C_ii(a1, b1, sigma,x1,x1)
C_12 = C_ij(a1, a2,b1,b2,x1,x2)
C_21 = C_ji(a1, a2,b1,b2,x1,x2)
C_22 = C_ii(a2, b2, sigma,x2,x2)
C = np.block([[C_11, C_12], [C_21, C_22]])
y = np.concatenate((y1,y2))
C_11_star = C_ii_pred(a1, b1,x1_star,x1)
C_12_star = C_ij(a1, a2,b1,b2,x1_star,x2)
C_21_star = C_ji(a1, a2, b1,b2,x1,x2_star)
C_22_star = C_ii_pred(a2, b2,x2_star,x2)
C_star = np.block([[C_11_star, C_12_star], [C_21_star, C_22_star]])
return np.matmul(C_star,np.linalg.inv(C)).dot(y), C, C_star
a1 = 1
a2 = 1
b1 = 0.2
b2 = 0.2 #0.2
sigma = 0.1
C_11 = C_ii(a1, b1, sigma,x1,x1)
C_12 = C_ij(a1, a2, b1,b2,x1,x2)
C_21 = C_ji(a1, a2, b1,b2,x1,x2)
C_22 = C_ii(a2, b2, sigma,x2,x2)
C = np.block([[C_11, C_12], [C_21, C_22]])
y = np.concatenate((y1,y2))
y_pred,_,_ = predict((a1, a2, b1, b2), y1, y2, x1,x2, x1, x2, sigma)

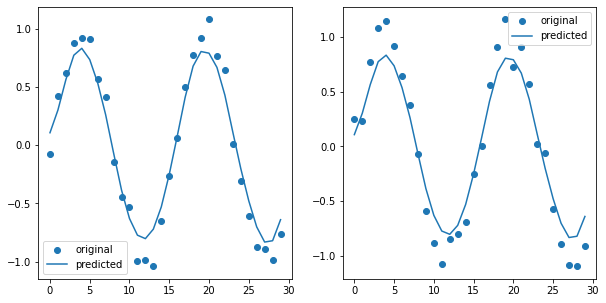

fig, ax = plt.subplots(1,2, figsize = (10,5))
ax[0].scatter(x1, y1, label ='original' )
ax[0].plot(x1, y_pred[:30], label ='predicted' )
ax[0].legend()
ax[1].scatter(x2, y2, label ='original' )
ax[1].plot(x2, y_pred[30:], label ='predicted' )
ax[1].legend()
neg_lik(C,y)
29.1429757365891
Our kernels seem to be working. Next, we define a function to estimate the hyperparameters using the marginal log-likelihood. For the marginal case:
from scipy.optimize import minimize
def objective_marginal(param, y1, x1, sigma):
a1 = param[0]
b1 = param[1]
C_11 = C_ii(a1, b1,sigma,x1,x1)
cost = neg_lik(C_11,y1)
return cost
def predict_marginal(param, y1, x1, x1_star, sigma):
a1 = param[0]
b1 = param[1]
C_11 = C_ii(a1, b1, sigma,x1,x1)
C_11_star = C_ii_pred(a1, b1,x1,x1_star)
return np.matmul(C_11_star.T,np.linalg.inv(C_11)).dot(y1)
out = minimize(objective_marginal, x0 = [10,0.3], args=(y1,x1, 0.1),bounds=((1e-5, 100), (1e-5, 100)), method = 'L-BFGS-B')
y_pred = predict_marginal(out.x, y1, x1,x1, sigma)

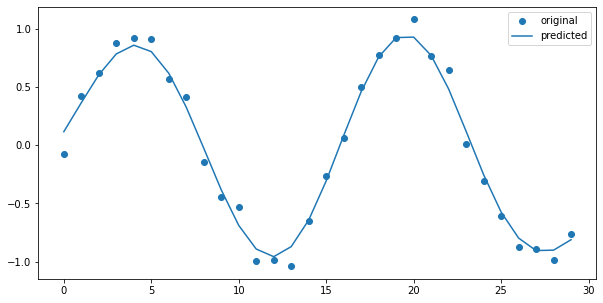

fig, ax = plt.subplots(1,1, figsize = (10,5))
ax.scatter(x1, y1, label ='original' )
ax.plot(x1, y_pred[:30], label ='predicted' )
ax.legend()
out.x
array([0.12391961, 0.36522661])
Seems to be working. Now we define a function to find the best hyperparameters of the joint process
from scipy.optimize import minimize
def objective(param, y1, y2, x1,x2, sigma):
a1 = param[0]
a2 = param[1]
b1 = param[2]
b2 = param[3]
C_11 = C_ii(a1, b1,sigma,x1,x1)
C_12 = C_ij(a1, a2,b1,b2,x1,x2)
C_21 = C_ji(a1, a2,b1,b2,x1,x2)
C_22 = C_ii(a2, b2,sigma,x2,x2)
C = np.block([[C_11, C_12], [C_21, C_22]])
y = np.concatenate((y1,y2))
n1 = len(y1)
n2 = len(y2)
cost = neg_lik(C,y)
return cost
out = minimize(objective, x0 = [0.5,0.5, 0.1, 0.1], args=(y1,y2,x1,x2, 0.1),bounds=((1e-5, 100), (1e-5, 100), (1e-5, 100), (1e-5, 100)), method = 'L-BFGS-B')
y_pred,_,_ = predict(out.x, y1, y2, x1,x2,x1,x2, sigma)

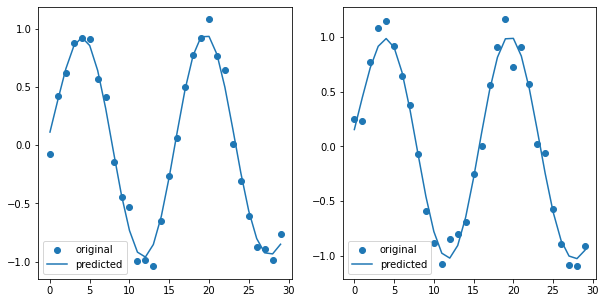

fig, ax = plt.subplots(1,2, figsize = (10,5))
ax[0].scatter(x1, y1, label ='original' )
ax[0].plot(x1, y_pred[:30], label ='predicted' )
ax[0].legend()
ax[1].scatter(x2, y2, label ='original' )
ax[1].plot(x2, y_pred[30:], label ='predicted' )
ax[1].legend()
out.x
array([0.11501486, 0.10188409, 0.3697313 , 0.40364407])
Works. In the remaining part, we illustrate the usefulness of the framework. We mask a part of the data and try to predict it. First by using no information and then by using the information of process 2.
y1_masked = np.concatenate((y1[:7], y1[20:]))
x1_masked = np.concatenate((x1[:7], x1[20:]))

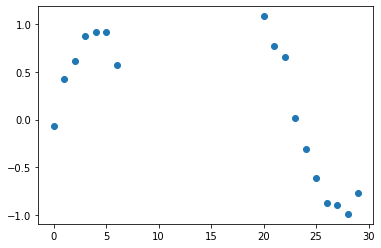

plt.scatter(x1_masked, y1_masked)
<matplotlib.collections.PathCollection at 0x1171c85a0e0>
Marginal case (no information):
out_marginal = minimize(objective_marginal, x0 = [1,0.01], args=(y1_masked,x1_masked, 0.1),
bounds=((0.05, None), (0.05, None)),
method = 'L-BFGS-B')
out_marginal
y_pred = predict_marginal(out_marginal.x, y1_masked, x1_masked,x1, 0.1)

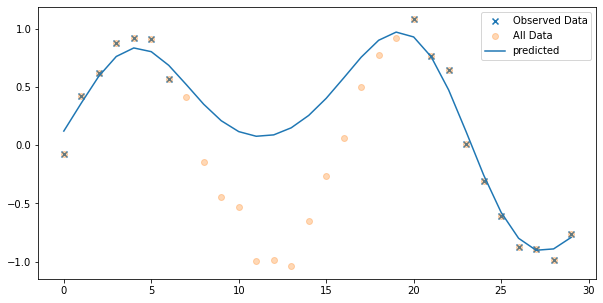

fig, ax = plt.subplots(1,1, figsize = (10,5))
ax.scatter(x1_masked, y1_masked, label ='Observed Data', marker= 'x' )
ax.scatter(x1, y1, label ='All Data',alpha = 0.3 )
ax.plot(x1, y_pred[:30], label ='predicted' )
ax.legend()
out.x
array([0.11501486, 0.10188409, 0.3697313 , 0.40364407])
We see that the predictions are bad at the interval where we do not observe data. Next, we use the joint framework to extract information from the second process to use in the prediction.
sigma = 0.1
out = minimize(objective, x0 = [0.2,0.2, 0.01, 0.01], args=(y1_masked,y2,x1_masked,x2, sigma),bounds=((1e-5, 100), (1e-5, 100), (1e-5, 100), (1e-5, 100)), method = 'L-BFGS-B')
y_pred, C,_ = predict(out.x, y1_masked, y2, x1_masked,x2,x1,x2, sigma) #[0.1, 0.1, 0.1, 0.1]

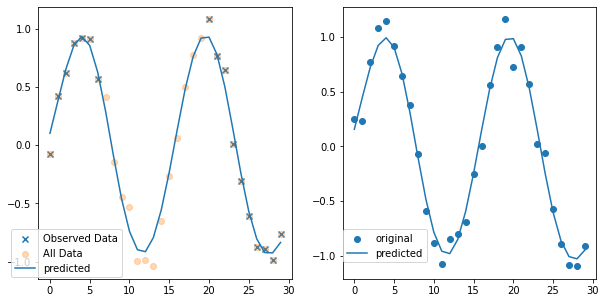

fig, ax = plt.subplots(1,2, figsize = (10,5))
ax[0].scatter(x1_masked, y1_masked, label ='Observed Data', marker= 'x' )
ax[0].scatter(x1, y1, label ='All Data',alpha = 0.3 )
ax[0].plot(x1, y_pred[:30], label ='predicted' )
ax[0].legend(bbox_to_anchor = (0.35,0.2))
ax[1].scatter(x2, y2, label ='original' )
ax[1].plot(x2, y_pred[30:], label ='predicted' )
ax[1].legend(bbox_to_anchor = (0.35,0.2))
neg_lik(C,np.concatenate((y1_masked, y2)))
out.x
array([0.13167358, 0.11177868, 0.35959916, 0.39335209])
We see that the prediction is a lot better

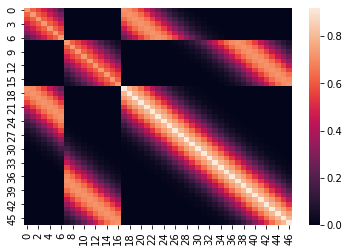

sns.heatmap(C)
