Deep Graph Kernels
In this notebook I will be constructing a deep graph kernel based on this paper. It utilizes the Weisfeiler-Lehman isomorphism test algorithm and/or the shortest-path algorithm. The kernel is then used for graph classification. The code is taken from jcatw which again cites Pinar Yanardag as the original author. The code is adjusted to accommodate the networkx library and python 3.
import networkx as nx
import pandas as pd
import numpy as np
import re
from nltk.stem.porter import PorterStemmer
import copy
We will use the mutag dataset which is a collection of nitroaromatic compounds and the goal is to predict their mutagenicity on Salmonella typhimurium. First we extract the dataset from the Grakel (a python graph kernel package) and transform it into a list of networkx (python network package) graphs.
from grakel.datasets import fetch_dataset
from grakel.kernels import ShortestPath
# Loads the MUTAG dataset
MUTAG = fetch_dataset("MUTAG", verbose=False)
Graphs, y_target = MUTAG.data, MUTAG.target
GG = []
for graph in Graphs:
y = nx.Graph()
y.add_edges_from(list(graph[0]))
nx.set_node_attributes(y, graph[1], 'label')
y =nx.convert_node_labels_to_integers(y)
GG.append(y)

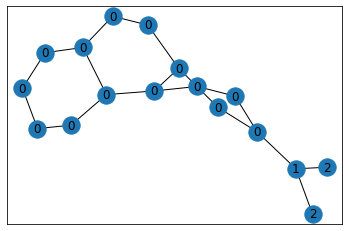

nx.draw_networkx(GG[0], labels = nx.get_node_attributes(GG[0], 'label'))
We can create a kernel matrix where all entries belonging to a class are similar to each other and dissimilar to anything else using:
$$K(G,G’) = \phi(G)^T M \phi(G’)$$
where $M$ is a $|\mathcal{V}| \times |\mathcal{V}|$ psd matrix that encodes the relationship between sub-structures or their proximity where $|\mathcal{V}|$ is the size of the vocabulary. We will let $\phi$ be a the simple the bag of words vector, meaning it counts how often certain sub-structures appear in the graph and is defined as
$$\phi: G \mapsto \phi(G) = (tf(t_1, G), \dots, tf(T_N, G)) \in {R}^N$$
where \(tf(t_1, G)\) is the frequency of sub-structure \(t_1\) in graph \(G\). If \(M_{12}\) is large then sub-structure number 1 and 2 are similar but if it is low then they are dissimilar. Given some sub-structures we want to find a good edit-distance to encode the similarity between two sub-structures. A sub-structure is a very general concept. This means that the user can pre-determine which he or she thinks is important for the classification task at hand. Here I will present sub-structures based on the Weisfeiler-Lehman iteration scheme and the shortest-path.
WL similarity
The Weisfeiler Lehman iteration is a scheme that test for isomorphisms. If the test is accepted then the graphs could be isomorphic and if it is rejected then the graphs are not isomorphic. In words, the algorithm updates the label of the node according to their neighbours. Example, the pairs (a, aabc) and (a, abb) where the first index is the node and the second index are the labels of the neighbours, would receive a different label during this WL iteration but (a, aabc) and (a, aabc) would get the same label. This is much better explained in this image.
The algorithm is the following:
The following function builds a corpus using the Weisfeiler Lehman iteration scheme. Multiset labels that belong a given iteration \(h\) can be treated as co-occurred in order to partially preserve a notion of similarity. That is for each graph we create a document where the terms in the document are the multi-set labels of the WL-iteration. Thus if two “documents” contain the multi-set labels they should have a high similarity.
def WLSimilarity( X, max_h):
labels = {}
label_lookup = {}
# labels are usually strings so we relabel them as integers for sorting purposes
label_counter = 0
num_graphs = len(X)
# it stands for wl iteration. the initial labelling is indexed at [-1]
# contains the feature map
wl_graph_map = {it: {gidx: dict() for gidx in range(num_graphs)} for it in range(-1, max_h)} # if key error, return 0
# initial labeling
# label_lookup is a dictionary where key is the label. This loops count how often the each
for gidx in range(num_graphs):
labels[gidx] = np.zeros(len(X[gidx]))
current_graph_labels = nx.get_node_attributes(X[gidx],'label')
for node in X[gidx].nodes():
label = current_graph_labels.get(node, -1) # label of current node, if not labelled it gets -1
if not label in label_lookup:
# if we have not observed this label we relabel at the current label_counter
label_lookup[label] = label_counter
labels[gidx][node] = label_counter
label_counter += 1
else:
labels[gidx][node] = label_lookup[label]
# Feature map add
wl_graph_map[-1][gidx][label_lookup[label]] = wl_graph_map[-1][gidx].get(label_lookup[label], 0) + 1
# we are constantly changing the label dictionary so we do a deepcopy
compressed_labels = copy.deepcopy(labels)
# WL iterations
for it in range(max_h):
label_lookup = {}
label_counter = 0
for gidx in range(num_graphs):
for node in X[gidx].nodes():
node_label = tuple([labels[gidx][node]])
neighbors = list(X[gidx].neighbors(node))
if len(neighbors) > 0:
neighbors_label = tuple([labels[gidx][i] for i in neighbors])
#node_label = str(node_label) + "-" + str(sorted(neighbors_label))
node_label = tuple(tuple(node_label) + tuple(sorted(neighbors_label)))
if not node_label in label_lookup:
label_lookup[node_label] = str(label_counter)
compressed_labels[gidx][node] = str(label_counter)
label_counter += 1
else:
compressed_labels[gidx][node] = label_lookup[node_label]
# Add to the feature map
wl_graph_map[it][gidx][label_lookup[node_label]] = wl_graph_map[it][gidx].get(label_lookup[node_label], 0) + 1
labels = copy.deepcopy(compressed_labels)
# Create the cropus which contains the documents (graphs)
# We will also calculate their frequency -> prop_map
graphs = {}
prob_map = {}
corpus = []
for it in range(-1, max_h):
for gidx, label_map in wl_graph_map[it].items():
if gidx not in graphs:
graphs[gidx] = []
prob_map[gidx] = {}
for label_, count in label_map.items():
label = str(it) + "+" + str(label_)
for _ in range(count):
graphs[gidx].append(label)
prob_map[gidx][label] = count
prob_map = {gidx: {path: count/float(sum(paths.values())) for path, count in paths.items()} for gidx, paths in prob_map.items()}
corpus = [graph for graph in graphs.values()]
return prob_map, corpus, wl_graph_map, graphs
prob_map, corpus, wl_graph_map, s = WLSimilarity(GG, 1)
corpus[0]
['-1+0',
...
'-1+0',
'-1+1',
'-1+1',
'-1+2',
'0+0',
...
'0+0',
'0+1',
'0+1',
'0+1',
'0+1',
'0+2',
'0+3',
'0+3',
'0+4']
The first number tells us which WL iteration the multilabel set belongs to, and the second number tells us which multilabel it received. Note that although we see “-1+0” and “0+0”, it does not mean that we saw both the multilabel 0 at the initalization and multilabel 0 at the first iteration. The label counter is simply reset to 0 at each WL iteration.
Shortest path similarity
We can also build shortest path similarity. It is known that the if there is a shortest path between nodes a and b then all sub-paths are also shortest paths. Using this property we can generate “documents” as the collection of all sub-paths in a graph.
def ShortestPathSimilarity(X, cutoff = None):
"""
Creates shortest path similarity for the Deep Kernel
:param X: List of nx graphs
"""
vocabulary = set()
prob_map = {}
corpus = []
for gidx, graph in enumerate(X):
prob_map[gidx] = {}
# label of each node
label_map = list(nx.get_node_attributes(graph,'label').values())
# get all pairs shortest paths
all_shortest_paths = nx.all_pairs_shortest_path(graph,cutoff) # nx.floyd_warshall(G)
# traverse all paths and subpaths
tmp_corpus = []
# source is node we are going from
# sink is node that we are walking to
for source, sink_map in all_shortest_paths:
for sink, path in sink_map.items():
sp_length = len(path)-1
label = "_".join(map(str, sorted([label_map[source],label_map[sink]]))) + "_" + str(sp_length)
tmp_corpus.append(label)
prob_map[gidx][label] = prob_map[gidx].get(label, 0) + 1
vocabulary.add(label)
corpus.append(tmp_corpus)
# Normalize frequency
prob_map = {gidx: {path: count/float(sum(paths.values())) for path, count in paths.items()} for gidx, paths in prob_map.items()}
return prob_map, corpus, label_map
prob_map, corpus, label_map = ShortestPathSimilarity(GG)
corpus[0]
['0_0_0',
'0_0_1',
'0_0_1',
'0_0_2',
...
'0_2_6',
'0_2_7',
'0_2_7',
'0_2_8',
'0_2_8',
'0_2_9']
We can see how the words in the documents have the form node1_node2_l which means that there exists a path from node1 to node_2 of length l.
Building M
We could simply let \(M = I\) where \(I\) is the identy matrix and than the kernel is simply a bag-of-words kernels, where the vector is a frequency count of the words. We can try to learn the similarity matrix using the Word2vec model or more specifically the skip-a-gram version.
The skip-a-gram model hot-encodes our word into the vector $x \in R^N$ where N is the number of words in the vocabulary. Then we define
$$h = W^{(1)}x$$ $$u = W^{(2)}h$$
where \(W_1 \in R^{N \times L}\) and \(W_2 \in R^{L \times N}\) where \(M\) is the dimension of our word representation.
Then the softmax function is applied to \(y_c = \text{softmax}(u)\) for \(c = 1, \dots, C\) where \(C\) is the number of words to predict given word \(x\).
The negative log-likelihood is
$$\mathcal{L} = -\log \prod_{c=1}^C P(w_{c,i} | w_o) = - \sum_{c=1}^C u_{c, j^*} + \sum_{c=1}^C \log \sum_{n=1}^N \exp(u_{c,n})$$
\(j^{*}\) denotes the ground truth for that given panel and \(u_{c,n}\) is the n-th entry in the vector \(u_c\).
We want find the weights \(W^{(1)}\) and \(W^{(2)}\), so we take the derivative with respect to each entry:
\[\frac{\partial \mathcal{L}}{\partial W^{(1)}_{ij}} = \sum_{n = 1}^N \sum_{c=1}^C \frac{\partial \mathcal{L}}{\partial u_{c, n}} \frac{\partial u_{c, n}}{\partial W^{(1)}_{ij}}\]
$$ \frac{\partial \mathcal{L}}{\partial W_{ij}^{(2)}} = \sum_{n = 1}^{N} \sum_{c=1}^{C} \frac{\partial \mathcal{L}}{\partial u_{c, n}} \frac{\partial u_{c, n}}{\partial W^{(2)}_{ij}} $$
We can show that
$$ \frac{\partial \mathcal{L}}{\partial u_{c, n}} = -\delta_{jj^*} + y_{c, n} $$
Defining \(E_n = \sum_{c=1}^C \Big( -\delta_{ii^*} + y_{c, n}\Big)\), gives
$$\begin{aligned} \frac{\partial \mathcal{L}}{\partial W_{ij}^{(1)}} &= \sum_{n = 1}^N \sum_{c=1}^C \Big( -\delta_{ii^} + y_{c, n}\Big) \frac{\partial}{\partial W^{(1)}{ij}} \Big( \sum{k=1}^N\sum_{l = 1}^L W_{nk}^{(2)}W_{kl}^{(1)} x_m\Big) \\\ &= \sum_{n = 1}^N \sum_{c=1}^C \Big( -\delta_{ii^} + y_{c, n}\Big) W^{(2)}{ni}x_j \\\ &= \sum{n = 1}^N E_n W^{(2)}{ni}x_j \\\ &= [E^TW^{(2)}]{i}x_{j} \end{aligned}$$
and
$$ \begin{aligned} \frac{\partial \mathcal{L}}{\partial W_{ij}^{(2)}} &= \sum_{c=1}^C \Big( -\delta_{ii^} + y_{c, i}\Big) \frac{\partial}{\partial W^{(2)}{ij}} \Big( \sum{k=1}^N\sum_{l = 1}^L W_{nk}^{(2)}W_{kl}^{(1)} x_l\Big) \\\ &= \sum_{c=1}^C \Big( -\delta_{ii^} + y_{c, i}\Big) \sum_{l = 1}^L W_{jl}^{(1)}x_l \\\ &= \sum_{c=1}^C \Big( -\delta_{ii^*} + y_{c, i}\Big) h_j \\\ &= E_i h_j \end{aligned} $$
We the use stochastic gradient descent with learning rate $\eta$ to minimize the loss
$$ W_{ij}^{(1), t} = W_{ij}^{(1), t-1} - \eta \frac{\partial \mathcal{L}}{\partial W_{ij}^{(1)}} $$ $$ W_{ij}^{(2), t} = W_{ij}^{(2), t-1} - \eta \frac{\partial \mathcal{L}}{\partial W_{ij}^{(2)}} $$
Finally our similarity matrix is then \(W_1 W_1^T\), which can be seen as the the dot product of our word embeddings.
We start by writing a function that hot-encodes our words:
def one_hot_encode(vocab):
one_hot = dict()
words = np.array(list(vocab.keys()))
for k in vocab.keys():
tmp = np.zeros(len(vocab))
tmp[k == words] = 1
one_hot[k] = tmp
return one_hot
Then we write a function that transform our corpus set into a one-hot encoding dataset
# GENERATE TRAINING DATA
def transform_corpus(corpus, one_hot, window = 2):
training_data = []
# for each word in each sentence look at window-neighbours and give the pair as training data
cnt = 1
for sentence in corpus:
# print(f'{cnt} {len(corpus)}')
cnt += 1
sent_len = len(sentence)
for i, word in enumerate(sentence):
w_target = one_hot[word]
w_context = []
for j in range(i-window, i+window+1):
if j!=i and j<=sent_len-1 and j>=0:
w_context.append(one_hot[sentence[j]])
training_data.append([w_target, w_context])
return training_data
def get_vocab(train_docs, test_docs):
vocab = dict()
for doc in train_docs:
for word in doc:
if word not in vocab:
vocab[word] = len(vocab)
for doc in test_docs:
for word in doc:
if word not in vocab:
vocab[word] = len(vocab)
return vocab
Finally we learn the embedding
def forward_pass(W1, W2, x):
h = np.dot(W1, x)
u_c = np.dot(W2, h)
y_c = softmax(u_c)
# h = np.dot(W1.T, x)
# u_c = np.dot(W2.T, h)
# y_c = softmax(u_c)
return y_c, h, u_c
def softmax(x):
e_x = np.exp(x - np.max(x)) # - np.max(x) trick for numerical precision
return e_x / e_x.sum(axis=0)
def backprop( E, h, x, W1 ,W2, eta):
dw2 = np.outer(E, h)
dw1 = np.outer(np.dot(E.T, W2), x)
# UPDATE WEIGHTS
W1 = W1 - (eta * dw1)
W2 = W2 - (eta * dw2)
return W1, W2
def train(training_data, L, eta = 0.05, epochs = 20):
N = len(training_data[0][0])
# INITIALIZE WEIGHT MATRICES
W1 = np.random.uniform(-0.7, 0.7, (L, N ))
W2 = np.random.uniform(-0.7, 0.7, (N, L))
# CYCLE THROUGH EACH EPOCH
for i in range(0, epochs):
loss = 0
for w_t, w_c in training_data:
y_pred, h, u = forward_pass(W1, W2, np.array(w_t))
error = np.sum([np.subtract(y_pred, word) for word in w_c], axis=0)
W1, W2 = backprop(error, h, np.array(w_t), W1, W2, eta)
loss += -np.sum([u[np.where(word == 1)] for word in w_c]) + len(w_c) * np.log(np.sum(np.exp(u)))
print(f'EPOCH: {i}, LOSS: {loss}')
return W1, W2
Let’s start with a very simple corpus, too see if you probabilities make sense
corpus = [['the','quick','brown','fox','jumped','over','the','lazy','dog']]
vocab = get_vocab(corpus,[])
one_hot = one_hot_encode(vocab)
training_data = transform_corpus(corpus, one_hot, window=2)
W1, W2 = train(training_data, 5, eta = 0.01, epochs= 5000)
EPOCH: 0, LOSS: 62.70608789420015
EPOCH: 1, LOSS: 62.37350155268606
EPOCH: 2, LOSS: 62.054143476689916
...
EPOCH: 4997, LOSS: 41.05911823870678
EPOCH: 4998, LOSS: 41.059104040422355
EPOCH: 4999, LOSS: 41.05908984506421
softmax(np.dot(W2, np.dot(W1, one_hot['fox'])))
array([8.68846163e-05, 2.46076725e-01, 2.46746438e-01, 3.80171876e-06,
2.53355432e-01, 2.52973207e-01, 3.06908315e-04, 4.50604009e-04])
softmax(np.dot(W2, np.dot(W1, one_hot['the'])))
array([1.08782578e-04, 1.60967204e-01, 1.58272813e-01, 9.26069831e-04,
1.65343960e-01, 1.69151033e-01, 1.74932783e-01, 1.70297355e-01])
Application of the deep graph kernel in graph classification
Continuing from before we load the data and create our graphs:
First we generate the feature vectors, corpus and vocabulary and generate their one-hot encodings:
prob_map_sp, corpus_sp, label_map_sp = ShortestPathSimilarity(GG, 2)
vocab_sp = get_vocab(corpus_sp,[])
one_hot_sp = one_hot_encode(vocab_sp)
len(vocab_sp)
27
Second we create our training data:
training_data_sp = transform_corpus(corpus_sp, one_hot_sp, window = 5)
W1_sp, W2_wl = train(training_data_sp, 35, eta = 0.01, epochs= 100)
EPOCH: 0, LOSS: 374814.73546567373
EPOCH: 1, LOSS: 372198.8859155059
EPOCH: 2, LOSS: 372248.3620957433
EPOCH: 3, LOSS: 372257.07566300465
...
EPOCH: 96, LOSS: 371991.4138051814
EPOCH: 97, LOSS: 371991.1381585368
EPOCH: 98, LOSS: 371990.7799381037
EPOCH: 99, LOSS: 371990.3349888323
Finally we create our similarity matrix, our feature vectors and the kernel matrix. We will create one with and without the similarity matrix
M = np.dot(W1_sp.T, W1_sp)
P = np.zeros((len(GG), len(vocab_sp)))
for i in range(len(GG)):
for jdx, j in enumerate(vocab_sp):
P[i][jdx] = prob_map_sp[i].get(j,0)
K_no_m = P.dot(P.T)
K_m = (P.dot(M)).dot(P.T)
With our kernel matrix, we can perform classification:
from sklearn.svm import SVC
from sklearn.metrics import accuracy_score
# Train an SVM classifier and make predictions
clf = SVC(kernel='precomputed', C= 50)
clf.fit(K_no_m, y_target)
y_pred_no_m = clf.predict(K_no_m)
clf.fit(K_m, y_target)
y_pred_m = clf.predict(K_m)
# Evaluate the predictions
print("Accuracy without similarity:", accuracy_score(y_pred_no_m, y_target))
print("Accuracy with similarity:", accuracy_score(y_pred_m,y_target))
Accuracy without similarity: 0.8297872340425532
Accuracy with similarity: 0.8085106382978723
Let’s try classification with the Gensim library
from gensim.models import Word2Vec
model = Word2Vec(sentences=corpus_sp, vector_size=35, window=5, min_count=0, workers=4)
M = np.zeros((len(vocab_sp), len(vocab_sp)))
for idx, i in enumerate(vocab_sp):
for jdx, j in enumerate(vocab_sp):
M[idx, jdx] = np.dot(model.wv[i], model.wv[j])
K_m2 = (P.dot(M)).dot(P.T)
clf.fit(K_m2, y_target)
y_pred_m = clf.predict(K_m2)
# Evaluate the predictions
print("Accuracy with similarity Gensim:", accuracy_score(y_pred_m,y_target))
Accuracy with similarity Gensim: 0.7287234042553191
The accuracies are very similar and similar to the ones stated in the paper. However the “Deep” in the deep kernel is not performing as well as a simple bag-of-words. Perhaps, the accuracy could be increases with hyper-parameter tunings, such as window-size, word-embedding dimension or number of epochs.
Improvements
To improve the word to vec model (for more general embeddings) we could do
- Phrase Generation - For example concatenate co-occuring words such as “los” and “angeles” become “los_angeles”.
- Subsampling - Decrease the portion of a word that is very frequent to balance between rare and frequent words.
- Negative Sampling - Only consider a small percentage of the words in the error term
During the classification we should do cross-validation to choose hyperparameters
