Introduction
In this notebook I will be trying to replicate the work of Dong-Hee Kim and Hawoong Jeong. The goal is to look at the eigen decomposition of the return correlation matrix. The decomposition allows us to separate the correlation into three parts. Namely, the marketwide effect, group correlation matrix and a random noise part. By filtering out the marketwide effect and the random noise, we can look at nontrivial correlation of stock groups. That is, we have will be able to identify groups of stocks that are highly correlated after taking the market correlation out of the equation. This is important as we know that the market conditions drive the stock returns and thus by filtering out the marketwide effect we have a better understanding of how diversified our portfolio is. In order to identify the groups we will use an optimization method called simulated annealing.
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
from scipy.linalg import eigh
Calculating the Correlation matrix
We start by calculating the correlation matrix. We will only consider data from 2011-01-01 until 2021-08-15
asset_profiles = pd.read_excel("data/YAHOO_PRICE_ESG.xlsx", sheet_name= 'asset_profiles')
price_data = pd.read_csv("data/YAHOO_PRICE.csv")
price_data['timestamp'] = pd.to_datetime(price_data['timestamp'])
price_filtered = price_data.loc[price_data['timestamp'] > '2011-01-01 04:00:00', price_data.columns]
price_filtered['date'] = price_filtered['timestamp'].dt.date
price_filtered['return'] = price_filtered.sort_values('date').groupby(['ticker']).adjclose.pct_change()
price_pivot = price_filtered[['ticker', 'return', 'date']].copy()
price_pivot['return'] = np.log(1 + price_pivot['return'])
price_pivot = price_pivot.dropna() # Drop rows which contain missing values
price_pivot = pd.pivot_table(price_pivot, values = 'return', index = 'date', columns= 'ticker')
C = price_pivot.corr()
Localization of Eigenvectors
Let’s examine the eigenvectors. Only a few components contribute to each eigenvector, and the stocks corresponding to those dominant components of the eigenvector are usually found to belong to a common industry. We can test this by doing a simple plot.
# Eigen decomposition
w, V = eigh(C)
w = np.flipud(w)
V = np.fliplr(V)
V_df = pd.DataFrame(V)
V_df['ticker'] = C.index
V_df = pd.merge(V_df, asset_profiles, on = 'ticker')
V_df = V_df.sort_values(by = 'sector' )
V_df['change'] = 0
V_df['index'] = range(V_df.shape[0])
last = ''
tick = []
tick_sector = []
for i in range(V_df.shape[0]-1):
if V_df['sector'].iloc[i] != V_df['sector'].iloc[i+1]:
V_df.loc[i, 'change'] = 1
tick.append(i)
tick_sector.append(V_df['sector'].iloc[i])
if i == V_df.shape[0]-2:
V_df.loc[i, 'change'] = 1
tick.append(i)
tick_sector.append(V_df['sector'].iloc[i])
nr_eigen = 8
fig, ax = plt.subplots(nr_eigen, 1, figsize=(10, 15))
plt.title('The eigenvalues squared.')
for i in range(nr_eigen):
V_plot = V_df.iloc[:,i]
ax[i].plot(range(len(V_plot)), np.abs(V_plot) ** 2)
for j in tick:
ax[i].axvline(j, color = 'black')
ax[i].set_title(f'eigenvalue nr {i}')
if i == nr_eigen -1:
ax[i].set_xticks(tick)
ax[i].set_xticklabels(tick_sector, rotation = 90)
fig.subplots_adjust(hspace=.5)

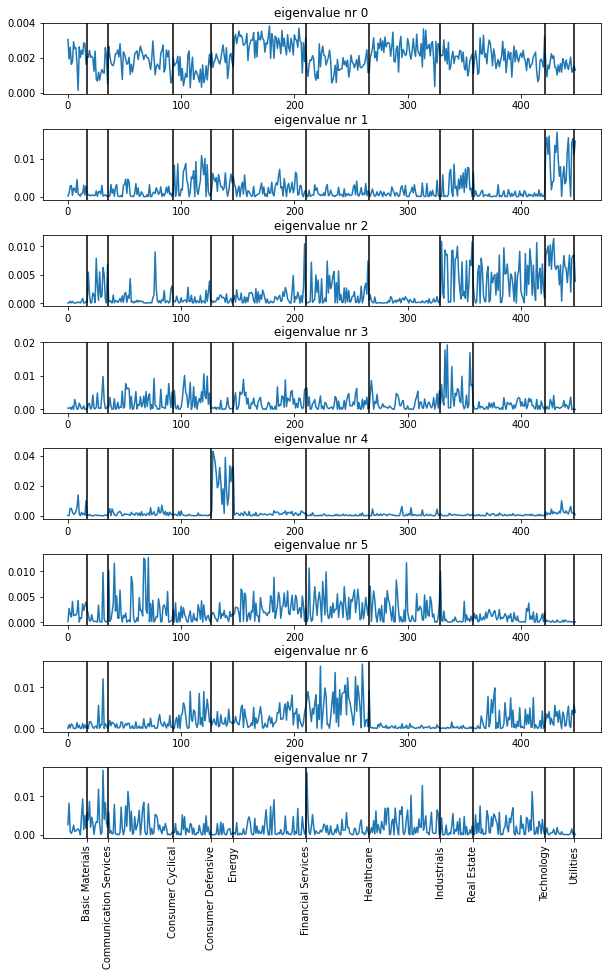

The figure shows the eigenvalues entries squared. We see that the first eigenvector, which corresponds to the marketwide effect, has not real dominant values. The other eigenvector, however, seem to have dominant eigenvalue entries which seem relate to sectors. This is especially true for eigenvector nr. 4 where we the entries correspond to the energy sector.
Group Identification
We are interested in decomposing the correlation matrix into the market correlation \(C^m\), group correlation \(C^g\) and the random noise \(C^n\). The idea behind group identification is pretty simple. We simply assume that the correlation matrix can be written as.
$$C = C^m + C^g + C^n = \lambda_0u_0u_0^T + \sum_{i=1}^{N_g} \lambda_i u_i u_i^T + \sum_{i=N_g +1}^{N} \lambda_i u_i u_i^T$$
Determining the market correlation is straight forward as it is simply the outer-product of the eigenvector corresponding to the largest eigenvalue. Determining \(N_g\) is more difficult, but we can do it graphically. It has been shown that the bulk of the eigenvalues of the stock matrix are in remarkable agreements with the universal properties of the random correlation matrix. Therefore, we simply choose the eigenvalues that are outside of the bulk.

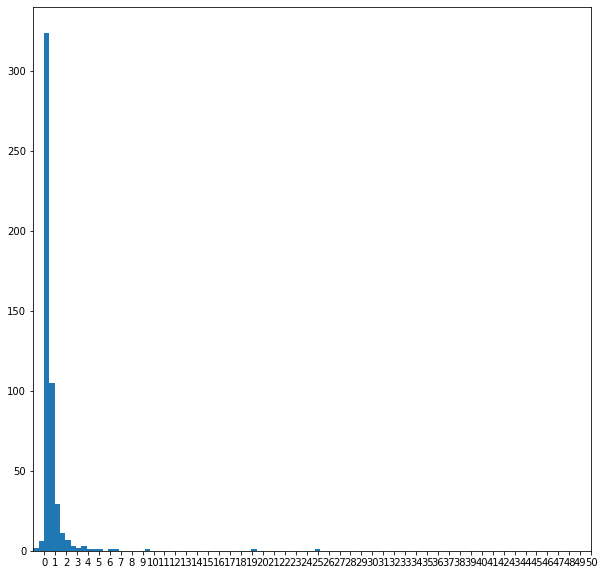

plt.figure(figsize =(10,10))
plt.subplot(1,1,1)
plt.hist(w, bins = 400)
plt.xlim([-1,50])
ticks = plt.xticks(range(51))
From this figure we can see that eigenvalues above \(\sim\) 3 are not inside of the “bulk”. So we just calculate the number of eigenvalues above 3.
sum(w >3)
13
Taking the largest 13 eigenvalues is ok (including the first eigenvector)
N_g = 12
C_m = w[0]*np.outer(V[:,0],V[:,0])
C_g = np.dot(V[:,1:(N_g+1)], np.diag(w[1:(N_g+1)])).dot(V[:,1:(N_g+1)].T)
C_g[C_g<0] = 0
One problem with this approach is that \(C_g\) is not a real correlation matrix (as the diagonals are not one anymore). Therefore, we should project the data onto the eigenvector corresponding to the market and the random noise and subtract it from the origin data set. After doing so once should then construct the group correlation matrix from the new data. However, I will skip that step for now. We want to use the group correlation matrix to find the groups of stocks. The stocks in each block should be correlated but stocks between different groups should not be correlated. That is we have intra-correlation but not inter-correlation. This means that the group correlation matrix should be block diagonalizable. As an example, a group correlation matrix with 3 groups should having the following pattern:
$$C_g = \begin{bmatrix} G_1 & \boldsymbol{0 } & \boldsymbol{0} \newline \boldsymbol{0} & G_2 & \boldsymbol{0} \newline \boldsymbol{0} & \boldsymbol{0} & G_3 \end{bmatrix}$$
Our current group correlation matrix, however, looks like this:

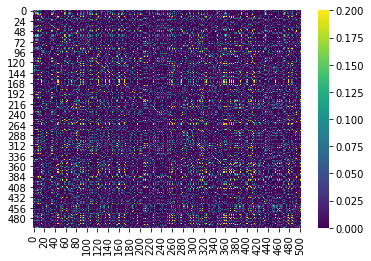

sns.heatmap(C_g, cmap = 'viridis', vmin = 0, vmax = 0.2 )
So to identify the groups, we need to shuffle the rows and columns until we have a block diagonal matrix. Unfortunately, that procedure is a combinatorial hard problem and with 500 stocks we have to approximate the best permutation. The authors suggested to consider an energy attraction function that should be minimized.
$$ E = \sum_{i < j} C_{ij}^g |l_i - l_j|\boldsymbol{1} (C_{ij}^g -c_c >0)$$
where \(l_i\) is the position of stock \(i\) in the new index sequence. We can choose whatever cutoff \(c_c\) we want. I will simply use \(c_c = 0\). One optimization method that can be used to approximate combinatorial hard problem is simulated annealing. The following code creates a class that can perform our optimization task.
class SA:
def __init__(self, C, step_max, temp_min, temp_start, alpha) -> None:
self.C = C.copy()
self.step_max = step_max
self.temp_min = temp_min
self.temp_start = temp_start
self.alpha = alpha
self.index = np.array(range(C.shape[0]))
label = np.zeros(C.shape)
label[range(C.shape[0]), range(C.shape[0])] = 1
label = label.cumsum(axis=0)
label[range(C.shape[0]), range(C.shape[0])] = 0
self.label = label.cumsum(axis=0)
def energy(self):
return np.trace(np.dot(self.C, self.label))
def move_state(self):
"""
Randomly swap rows.
"""
p0 = np.random.randint(0, len(C)-1)
p1 = np.random.randint(0, len(C)-1)
self.C_last_state = self.C.copy()
self.index[p0], self.index[p1] = self.index[p1], self.index[p0]
self.C[[p0,p1],:] = self.C[[p1,p0],:]
self.C[:,[p0,p1]] = self.C[:,[p1,p0]]
#print(self.C == self.C_last_state)
def update_temperature(self, step):
return self.temp_start / (1 + self.alpha * step)
def optimize(self):
# begin optimizing
step = 1
t_step = self.temp_start
self.best_energy = np.inf
self.best_index = np.array(range(C.shape[0]))
self.not_keeping = 0
while step < self.step_max and t_step >= self.temp_min:
current_energy = self.energy()
self.move_state()
new_energy = self.energy()
dE = new_energy - current_energy
# determine if we should not accept the current neighbor
# we always accept if we find a new a better energy state,
if step % 1000 == 0:
print(f'{step} {t_step} {-dE / t_step}')
if np.log(np.random.uniform()) > -dE / t_step:
self.not_keeping +=1
self.C = self.C_last_state.copy()
# keep track of best index
if new_energy < self.best_energy:
self.best_energy = new_energy
self.best_index = self.index.copy()
# update some stuff
t_step = self.update_temperature(step)
step += 1
The following code runs the optimization (which might take some time),
sa = SA(C = C_g.copy(), step_max = 500000, temp_min= 1, temp_start= 100000,alpha=0.1 )
sa.optimize()

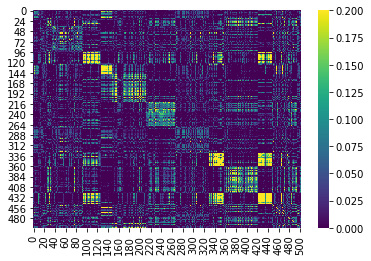

sns.heatmap(sa.C, cmap = 'viridis', vmin = 0, vmax = 0.2)
We can certainly see a block diagonal structure but there is a lot of noise. Trying different hyperparameters is give similar solution. The grouping is not as clear as in the original paper but it should be noted that the data is not the same, we are using data from 2011 and onwards while the authors use data from 1983 −2003.
Ordering by Sector
It is interesting to see what happens if we order by the sector.
C_df = pd.DataFrame(C)
C_df = pd.merge(C_df, asset_profiles, left_index=True, right_on='ticker', how = 'left')
C_df['my_index'] = range(C_df.shape[0])
C_df = C_df.sort_values(by = 'sector')
p = list(C_df['my_index'])
C_g_sector = C_g.copy()
N = C_g_sector.shape[0]
for i in range(N):
C_g_sector[:,i] = C_g_sector[p,i]
for i in range(N):
C_g_sector[i,:] = C_g_sector[i,p]
sns.heatmap(C_g_sector, cmap = 'viridis', vmin = 0, vmax = 0.2)
We can clearly see some blocks, but the matrix is not really block diagonal. Also, if we compare the energy of the simulated annealing solution and the sector ordering we see that the simulated annealing solution gives us lower energy.
label = np.zeros(C.shape)
label[range(C.shape[0]), range(C.shape[0])] = 1
label = label.cumsum(axis=0)
label[range(C.shape[0]), range(C.shape[0])] = 0
label = label.cumsum(axis=0)
print(f'Simulated annealing energy: {np.trace(np.dot(sa.C, label))}')
print(f'Sector energy: {np.trace(np.dot(C_g_sector, label))}')
Simulated annealing energy: 194934.5626893667
Sector energy: 449499.61127649556
